TM-14 Series

Mobile and Stationary TM-14 Smart Tilt Mixers lead the industry in durability, longevity, and technology.

TM-14 Advantage

  • 14 YD³ capacity for true 12 YD³ mix of high slump concrete without spillage

  • PLC-based controls identify faults via flash code

  • Remote access for troubleshooting

  • Onboard stabilization components for better control

  • 2 Automatic, independent lube systems
  • Individual hoses running from HPU to cylinders

  • Proximity switches to eliminate moving parts & ensure better accuracy

  • Forged ring gear lowers risk of drum warping

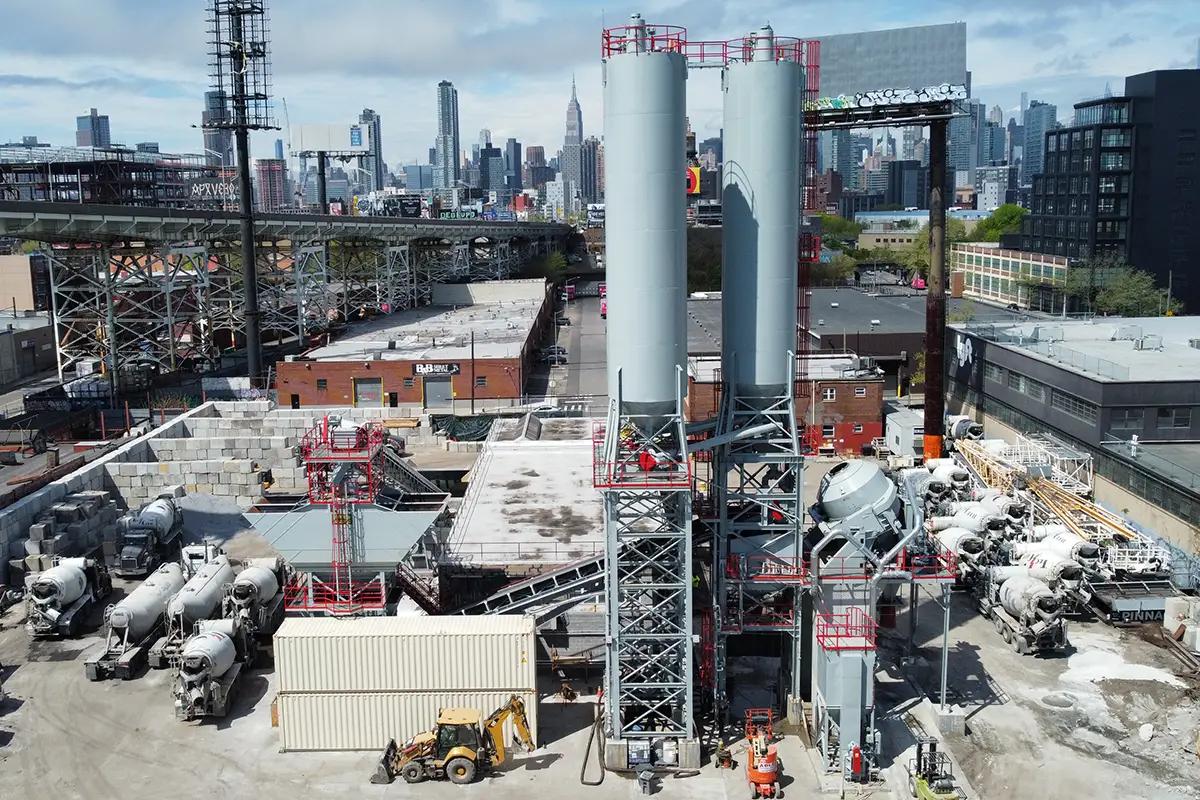

Overview

The Vince Hagan TM-14 Smart Tilt Mixer leads the industry in durability, longevity, and technology. The 14 yard drum allows for a true 12 yard load, maximizing profitability. An industry first PLC-based control system enables remote access, and offers sensors that monitor the mixer for potential production interruption.

We design our mixer components to meet the needs of your Ready Mix and paving projects with the most consistent mixes and lower maintenance costs. Onboard stabilization components manage the tilt and returns for cleaner truck loading. Same-size pinion and gears along with a continuous forged bull-ring gear ensure the longevity and reduce the risk of drum warping.

New Features

  • PLC system automates mixer operation while enabling monitoring and remote diagnostic access.

  • System monitors mixer conditions, alerts faults, and notifies operator about maintenance needs.

  • Enables operator to determine if excess buildup is in the drum. Alerts operator on excessive current draw indicating mixer buildup and requires maintenance.

  • Automated PLC bull ring spray lubrication system extends mixer components life and reduces maintenance costs.

  • PLC monitors bearing and bushing grease system for proper mixer lubrication.

  • PLC soft starters reduce mixer drive wear and increases energy efficiency.

  • PLC controlled mixer with variable speed drive adjusts drum rotation speed during inactivity, charging, and mixing. Optional system upgrades include: VFD controller, solid state overloads, and PLC panel for automated speed control (2-12 rpm).

  • With industry first position sensors, this allows the PLC system controls and monitors the tilt for repeatable and smooth operation within defined parameters.

Trailer Features

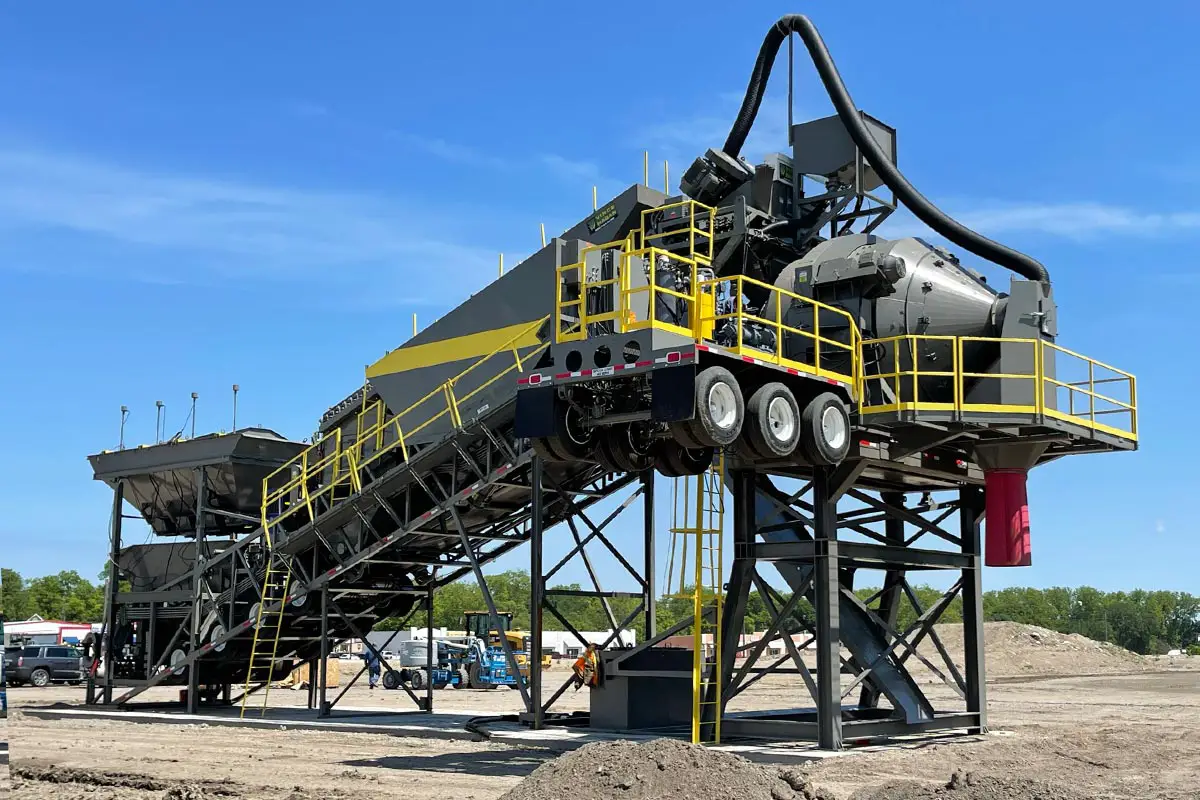

  • Heavy duty portable trailer for ease of delivery and quick setup

  • Triple axle design to meet DOT requirements

  • Mobile Mixer Support Stand has 12’ 9” drive through clearance when dump hopper and boot are added

  • All electrical and hydraulics mounted on trailer frame

  • Pre-piped and pre-wired for easy start-up

  • Most portable central mix plant in the industry with the fewest loads of freight.

Key Features

  • Designed to meet or exceed specs of PMMD & CPMB

  • 45 sec. mix time @ 1”-3” slump (Paving Use)

  • 30 sec. mix time @ 4”-6” slump (General Use)

  • Twin 75 HP Drives

  • Significant reduction in foundation requirements

Heavy-Duty Drum Rollers & Forged Ring Gear
PLC Fault System Lights
Wrap-Around Poly-Lined AR-400 Steel Blades
Twin 75 HP Motors

Specifications

Stationary Mixer
Dimensions Stationary TM-14
Operating Dimensions:
Length
Width
Height
Weight		 46’ 11 1/2”
12’
14’ 5 1/4”
70,000#
Mobile Mixer
Dimensions Mobile TM-14
Travel Dimensions:
Load Length
Load Height		 47’ 0 1/2”
14’ 5 1/4”
Operating Dimensions:
Length
Width
Height
Weight		 46’ 11 1/2”
12’
14’ 5 1/4”
70,000#
