Mobile Stacking Conveyors

Aggregate Conveyors

Vince Hagan offers a heavy-duty line of material handling conveyors known for durability.

Key Specs

  • 24″-36” conveyors are designed to run at 300 FPM

  • 3-Ply Polyester Cord Belting

  • Loader hoppers are available in 10′ X 6′,10′ X 10′, or 12′ X 12′

  • Belt drive components consist of a head end mounted TEFC electric motors

  • Grip strut walkway with toe boards & emergency pull-cord safety switch

  • Pre-wired in accordance to (NEC) National Electrical Code

  • Motor starter NEMA panel is UL certified

  • Air rotary, air impact, and electric vibrators offered for loader hoppers

Overview

Vince Hagan offers a heavy-duty line of material handling conveyors known for durability. Tailor the conveyors to match your plant’s maximum production capacity. We build each conveyor with a heavy-duty 36” deep truss frame that accommodates a 24”-36” wide belt.

Radial stacking conveyors offer flexibility in production capacity and site layout. Utilize a single conveyor to charge multiple bin compartments, or combine conveyors to charge multiple materials at once. Mobile options are available for mobile plant setups.

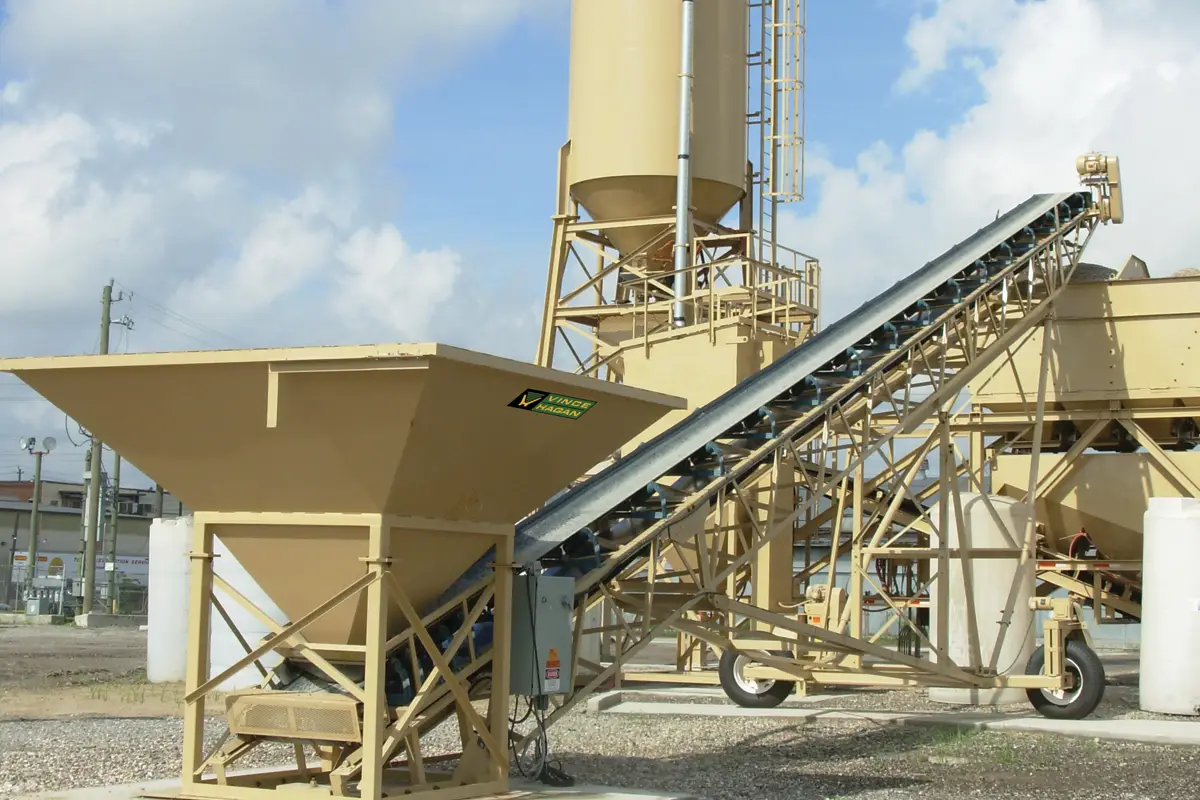

Mobile Stacking Conveyor

Suitable for travel and remain fixed

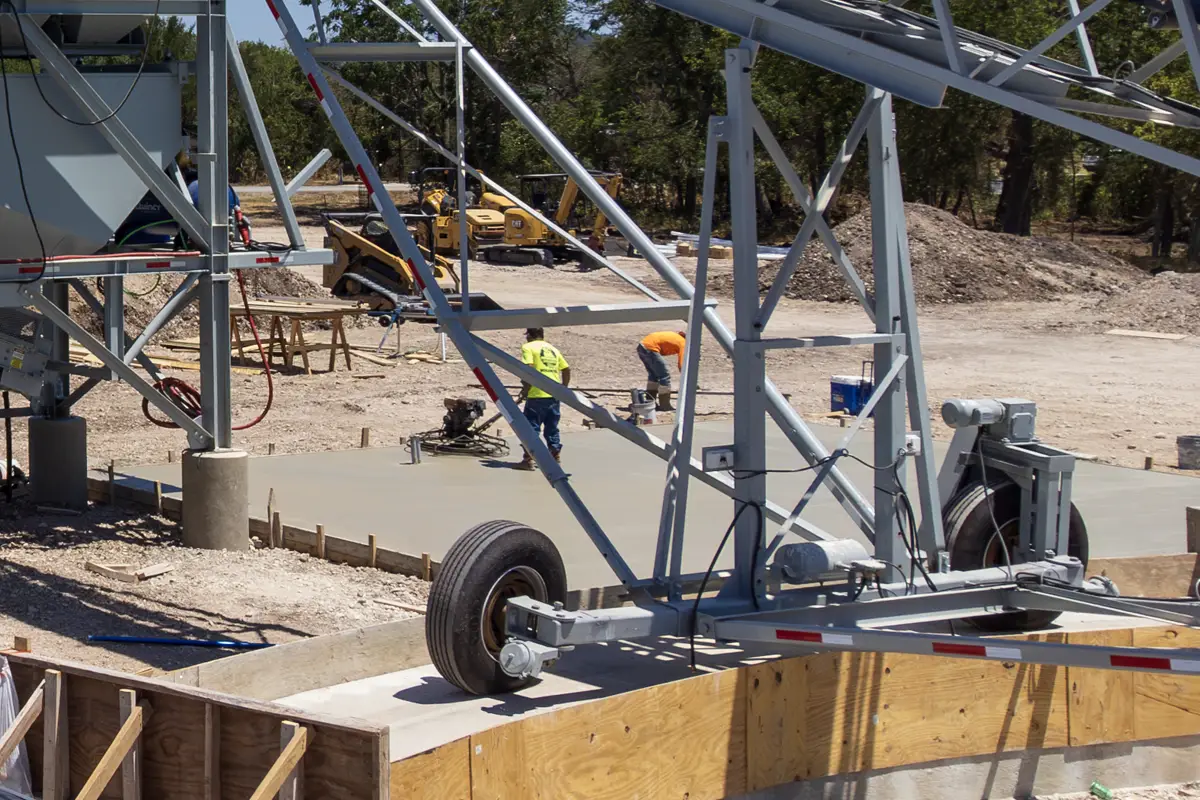

Mobile Radial Stacking Conveyor

Suitable for travel & can wheels can pivot to radiate

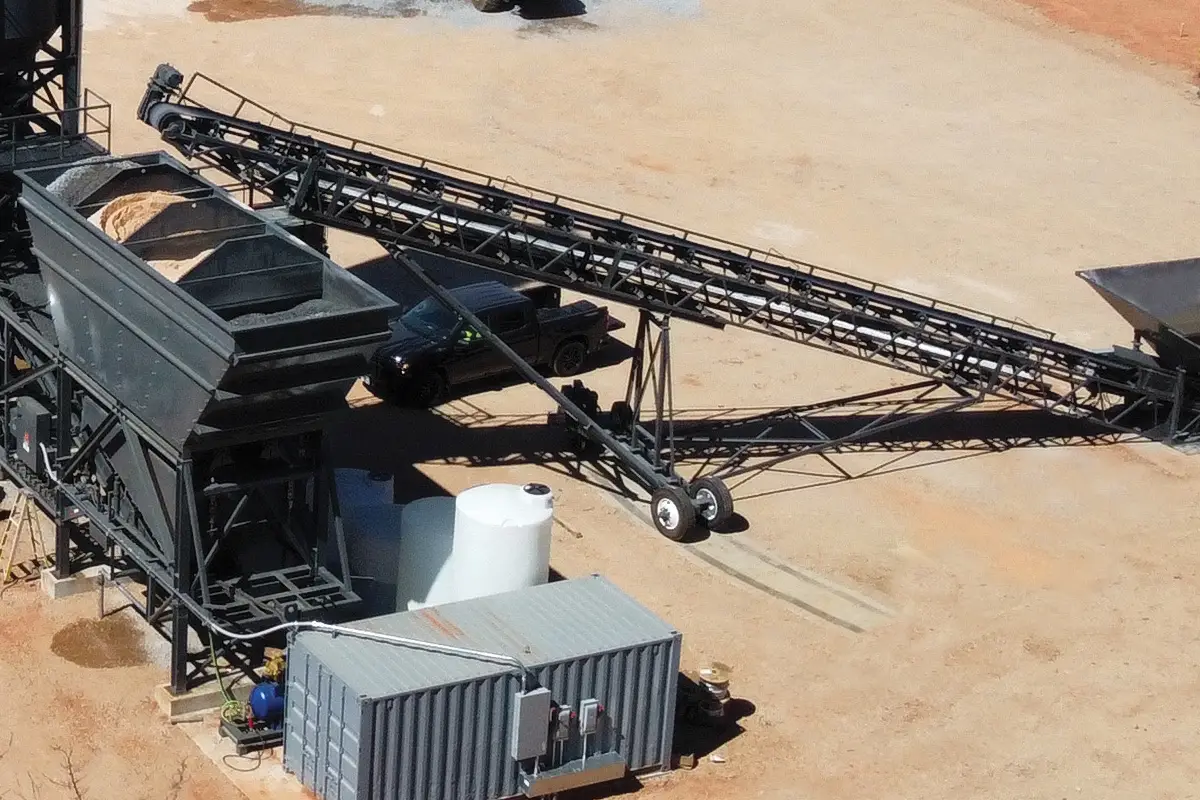

Radial Stacking Conveyor

Wheels remain fixed for radiating

Standard Components

  • Heavy Duty 36” Deep Truss Design Stackers Basic Unit Standard Components

  • Each 36” deep truss radial stacking conveyor is heavy duty and constructed 3” x 3” chord angles

  • Includes 35 degree troughing idlers located on 4’-6” centers

  • Return rollers located at 10’ centers (Idlers have sealed-for-life bearings)

  • Vulcanized rubber lagged head pulley

  • Wing type self-cleaning tail pulley mounted on ball bearing pillow blocks with adjustable screw take-ups

  • Tail pulley guard

  • 3-ply polyester cord belting with 1/8” ply layer x 3/16” top layer

  • Flexco belt splice, wind loops, and cold rolled steel head and tail shafts

  • Belt drive components consist of a head end mounted TEFT electric (460V/3PH/60HZ) motor, enclosed torque arm speed reducer (shaft mounted) and positive acting backstop to prevent roll back

  • Dual 11.00 x 22.5 tires are used on conveyors 80’ and longer

Standard Equipment

  • Side Travel: Side travel drive components consist of an electric motor with reducer and chain drive to wheel

  • Loader Hoppers: Front-end loader hoppers are build onto each stacker. All truss stackers have a 5 yard capacity (10’ x 6’) loader hopper. See options for larger hoppers

  • Starter Panel – Controls: Stackers purchased with a starter panel and controls (460V/3PH/60Hz) are self-propelled radially (optional), which allows stock-piling or loading bins for more than 270 degrees without the loader operator leaving their seat. This is accomplished by having all controls located at the charging hopper. Wiring is S.O. rubber cord.

  • Shipping: Stackers will be shipped knocked down and are to be assembled by the customer

Radial Stacker Options

  • Optional Loader Hoppers Integrally Mounted: 10'x10' (7 YD) or 12' x 12' (11 YD)

  • Air brakes for portable operations

  • Pre-wiring with controls, motor starters, and main disconnect in NEMA enclosure

  • Walkway supports, handrail, and decking

  • Radio remote control

  • Belt covers

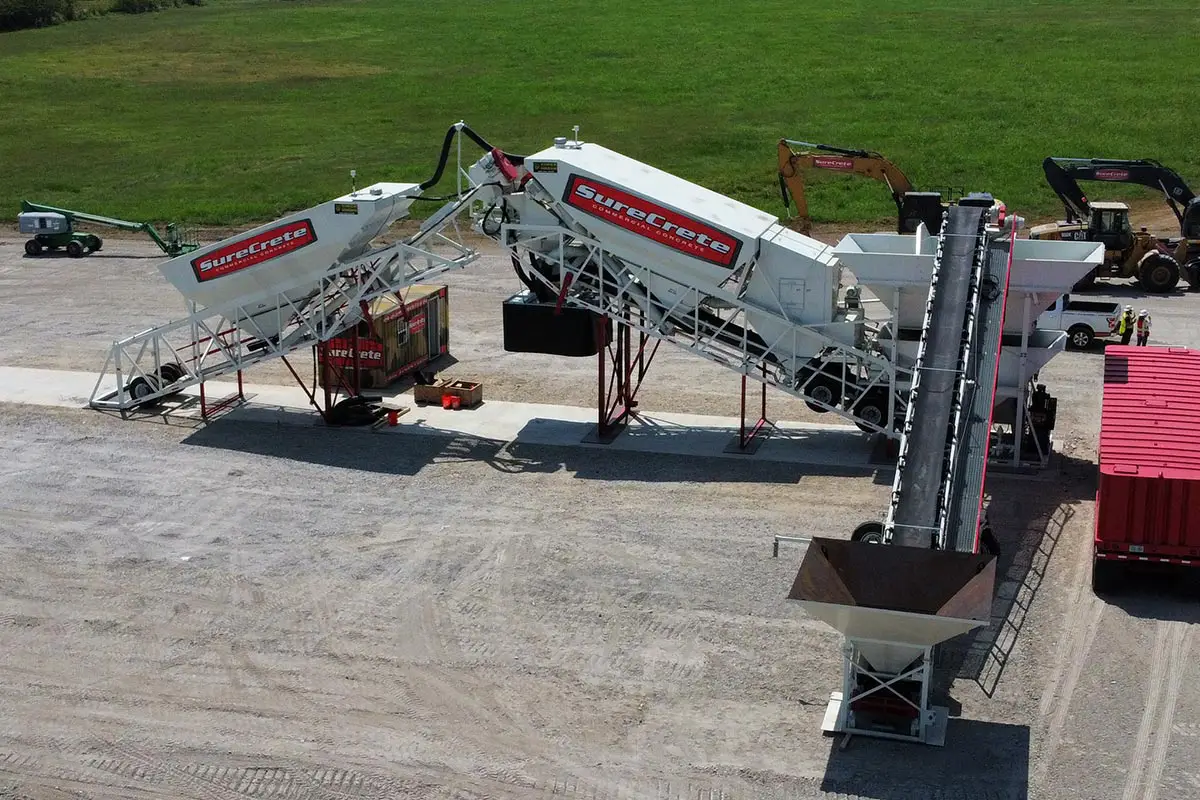

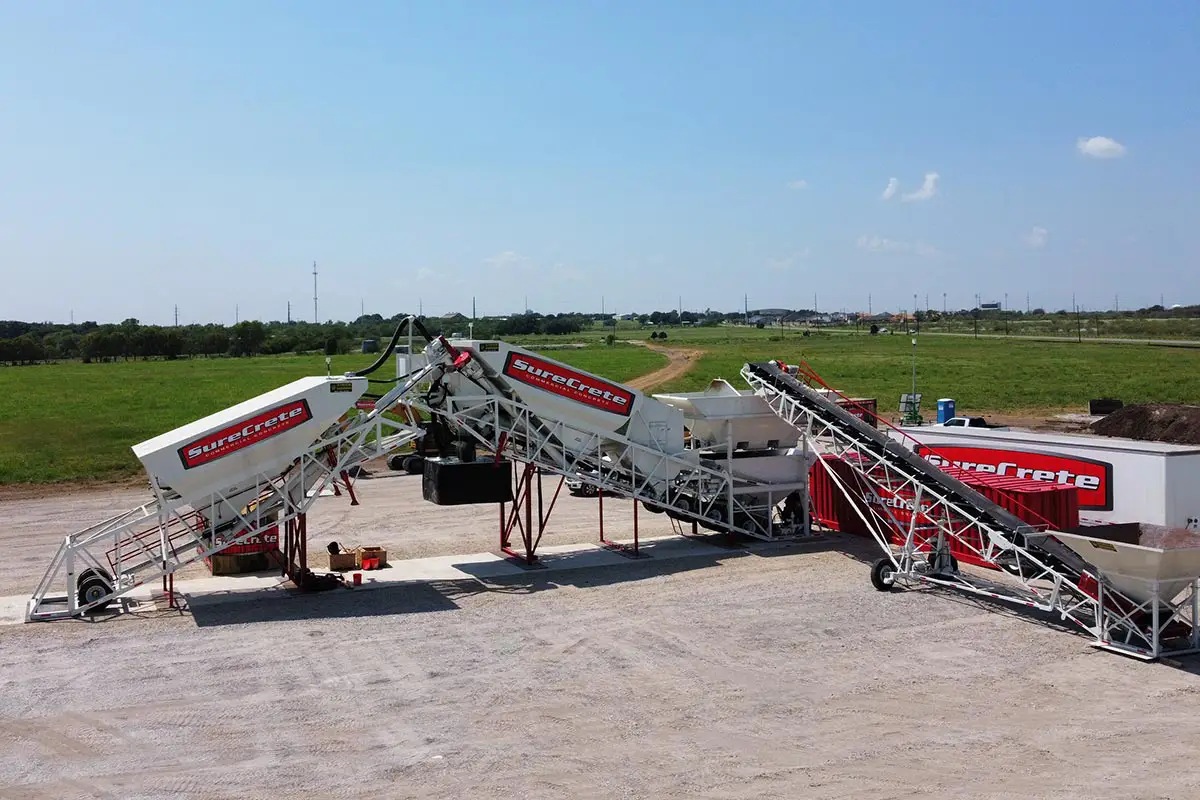

Plants in Action
