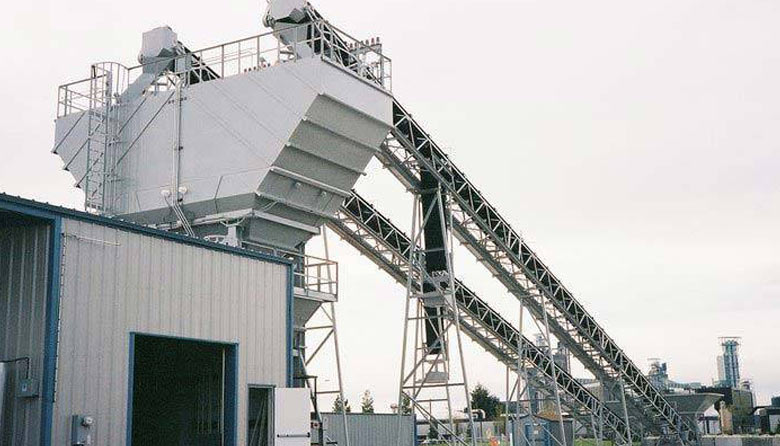

Stationary Conveyors

Aggregate Conveyors

Key Specs

  • 24″-36” conveyors are designed to run at 300 FPM

  • 3-Ply Polyester Cord Belting

  • Loader hoppers are available in 10′ X 6′,10′ X 10′, or 12′ X 12′

  • Belt drive components consist of a head end mounted TEFC electric motors

  • Grip strut walkway with toe boards & emergency pull-cord safety switch

  • Pre-wired in accordance to (NEC) National Electrical Code

  • Motor starter NEMA panel is UL certified

  • Air rotary, air impact, and electric vibrators offered for loader hoppers

Overview

Vince Hagan offers a heavy-duty line of material handling conveyors known for durability. Tailor the conveyors to match your plant’s maximum production capacity. We build each conveyor with a heavy-duty 36” deep truss frame that accommodates a 24”-36” wide belt.

Our stationary conveyors offer various bin charging options, including flop chutes and turn heads. For conveyors over 100’, gravity take-up assembly is included.

Features

  • Each 36” deep truss stationary conveyor is heavy duty and constructed with 3” x 3” chord angles

  • Includes 35 degree troughing idlers located on 4’-6” centers

  • Return rollers located at 10’ centers (Idlers have sealed-for-life bearings)

  • Vulcanized rubber lagged head pulley

  • Wing type self-cleaning tail pulley mounted on ball bearing pillow blocks with adjustable screw take-ups

  • Tail pulley guard

  • 3-ply polyester cord belting with 1/8” ply layer x 3/16” top layer

  • Flexco belt splice, wind loops, and cold rolled steel head and tail shafts

  • Belt drive components consist of a head end mounted TEFT electric (460V/3PH/60HZ) motor, enclosed torque arm speed reducer (shaft mounted) and positive acting backstop to prevent roll back

  • Conveyors over 100’ will have a gravity take-up assembly and weight box

Options

  • 10’ x 6’ (5 YD) Loader Hopper: Includes structural supports and manual sliding gate to control materials. Hopper constructed of 1/4” steel plate

  • 10’x10’ (7 YD) Loader Hopper

  • 12’ x 12’ (11 YD) Loader Hopper

  • Catwalk (one side): Grip strut flooring w/toe boards, handrails, and emergency pull-cord safety switch

  • Discharge hood: 3/16” plate with 1/4” wear plate to divert material down, comes in 24”, 30”, and 36”

  • Drip pan: 10 gauge plate with 2” x2” angle sides. 10’ section, comes in 24”, 30”, and 36”

  • Belt Scraper: Mechanical belt wiper to mount at head pulley, comes in 24”, 30”, and 36”

  • Top belt covers: Rolled steel cover and hoops hinged to fit over belt

  • Wind loops: 1/2” diameter rod loop to mount on troughers

  • Flip/flop material diverter: (2 positions) Includes air cylinder, air control valve, and 1/4” AR liner plate. No air piping, comes front to rear or side to side

  • Turnhead electric: Includes motor starter and control panel

  • 230V/3PH/60HZ voltage and other voltages available – consult factory
