ConExpo - Con/AGG Last Vegas 2017

2017 CONEXPO-CON/AGG Tradeshow

Visit us at Booth B7703 • March 7 – 11 • Las Vegas Convention Center

Every major construction industry is represented amongst 2,400 exhibitors, including asphalt, aggregates, concrete, earthmoving, lifting, mining, utilities and more. By attending or exhibiting at CONEXPO-CON/AGG, you are at the forefront of construction equipment, technology and product breakthroughs. Industry leaders are in attendance to provide the more than 130,000 attendees with industry trends and emerging technology to help you and your business operating at peak performance.

Visit the CONEXPO-CON/AGG Website for more details

HT Series - Haganator Travel All - ConExpo - Con/AGG Last Vegas 2017

120 – 400 CU. YARDS/HR

The HT-Series mobile concrete batch plant, which has set the industry standard since 1956, is the perfect choice for on-site projects or stationary locations where height or production are factors. This unit is a patented truss frame design that travels as only one load.

HT Series Haganator Travel All featured at ConExpo - Con/AGG Last Vegas 2017
  • Hydraulic Self Erect System plant can be placed in operating position in less than 1 hour (optional)
  • With the exclusive in-truss Jet Pulse Dust Collector one load of freight can be eliminated
  • 250 to 500 BBL in-truss cement storage silo
  • 45 to 100 ton aggregate storage (2, 3 or 4 compartments)
  • 12 cu. yard aggregate and cement batchers
  • 24″ to 48″ batch transfer belt
  • Pre-wired in emt conduit to (NEC) National Electrical Code with circuit breakers
  • 3” water system – weighed water system available
  • Plant service walkways with safety yellow paint (optional)
  • Electric wench for folding legs (optional)
  • Foundation not required in most cases, (set-up on steel plates, crane mats) dependent on soil conditions
  • Operational information plates posted on plant components
  • Air and water lines are pre-plumbed & visibly labeled on the plant
  • Plant is made in Texas completely erected and tested at the factory prior to shipping
  • Mobile HCA auxiliary silo for extra cementatious storage available to match to plant
  • CPMB (Concrete Plant Manufacturers Bureau) rated and plated
Get a Haganator Travel All Quote
HCA 400 - Auxiliary Silo - ConExpo - Con/AGG Last Vegas 2017

The HCA mobile auxiliary silo allows for low profile additional cement or fly ash storage up to 500 bbls.

  • Hydraulic Self Erect available
  • 300, 400, & 500 bbl silo storage available
  • 7”, 10”, & 12” multi-flight screw feeder available
  • Electric wench for folding legs (optional)
  • 4” or 5” fill pipe
  • Rodding port at silo discharge (optional)
  • Service walkway with safety yellow paint (optional)
  • Silo-top jet pulse dust collector (optional)
  • Foundation not required in most cases, (set-up on steel plates or crane mats dependent on soil conditions)
  • Silo is made in Texas completely erected and tested at the factory prior to shipping
  • CPMB (Concrete Plant Manufacturers Bureau) rated and plated
HCA-400 - Auxiliary Silo - ConExpo - Con/AGG Last Vegas 2017
Get a HCA-400 Auxiliary Silo Quote

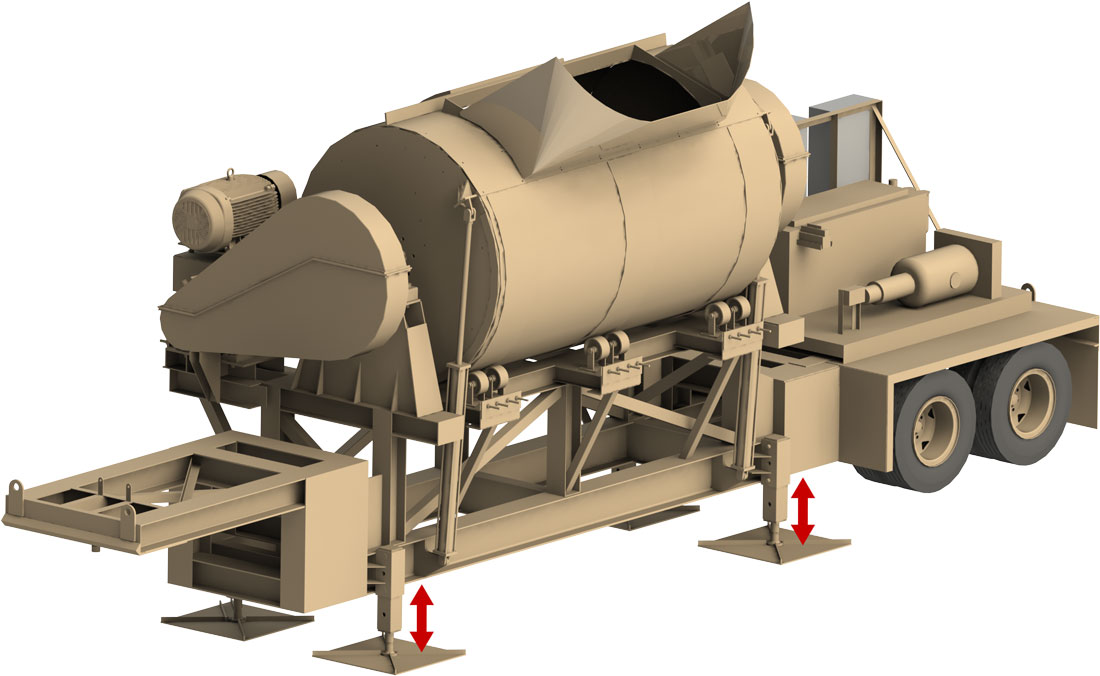

HM-10 Horzontal Mixer - ConExpo - Con/AGG Last Vegas 2017

Paving • Ready Mix • RCC • CTB

The Vince Hagan company’s patented high speed versatile horizontal shaft ribbon mixer that is designed for high production. This mixer can produce low slump slip form paving mix, regular ready mix concrete, cement treated base, and roller compacted concrete.

HM-10 Horzontal Mixer - ConExpo - Con/AGG Last Vegas 2017
  • Hydraulic Self Erect available
  • Plant mixer manufactures division performance rated at a 30 second mix time (up to 400 yd/hr)
  • 21 second discharge cycle
  • 10, 8, & 4.5 cu. yard drum sizes available
  • Twin 125hp drives
  • Long lasting cast ni-hard steel blades
  • 400 Brinell hardness ar steel liners (replaceable)
  • Tungsten hardened shaft ends (optional)
  • Tandem axle trailer standard triple axle available
  • Auto lube system
  • RCC upgrade (optional)
  • 25hp hydraulic system
  • Plant mixer manufactures division performance rated
  • Accepted by army corps of engineers
  • Special discharge chute for ready mix trucks and 40hp hydraulic system wet belt conveyor are some available options
Get a Horizontal Mixer Quote
